Wheat combine harvester

Product categories of Wheat combine harvester, we are specialized manufacturers from China, Wheat Combine Harvester, Wheat Harvester suppliers/factory, wholesale high-quality products of Wheat Combine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

China Wheat combine harvester Suppliers

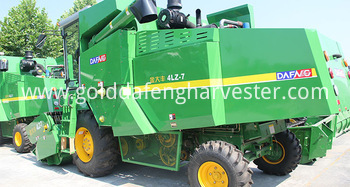

This model is applied to wheat and rice which can achieve harvesting, threshing, separating and cleaning all at one time. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms.
The cutting platform is equipped at the front of the body, which makes inclining T-shape with the threshing body, is applied to cutting and delivering. Hydraulic controlled lifting of the cutting platform and reel enable the operation more reliable. The threshing and cleaning which includes threshing, separating, cleaning and delivering mechanism etc. is applied to threshing, separating, cleaning and delivering the seeds to the storage box, with the terms in strips and chaffed spread to the ground. The 150 HP engine is located at the top of the cleaning room, which offer the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels.

The cabin includes the operating mechanism and the instrument system which is for the operating and monitoring the working system.

Specifications for wheat&Rice Combine Harvester machine
Model
4LZ-7
Barn capacity
2m³
Feeding volume
7kg/s
Threshing type
dual- roll
Working width
2560mm
Horse power
150 HP
Working efficiency
6000-12000m2/h
Dimensions
6700*3400*3380mm

4lz-74lz.7
Shandong dafeng Machinery Co.,Ltd

Employing more than 600 people, the Company is composed of manufacturing department, marketing department, engineering department, purchase department, process equipment department, QA department, HR department, administrative department, financial department, etc. The Company totally covers 100,000m2. Till now, the phase I and phase II, which include a 33,600m2 modern standard plant building and a 1,500m2 office building, have been completed, and their total investment was more than RMB 180 million.
